BNC to ADC Adapter

../../../_images/1_BNC_to_ADC_soldered.jpg

Source

BNC to ADC repository <https://bitbucket.org/ultrazohm/uz_per_adc_to_bnc/>

Functionality

External Adapter Card to get BNC signals to the ADC Adapter card.

Before first use

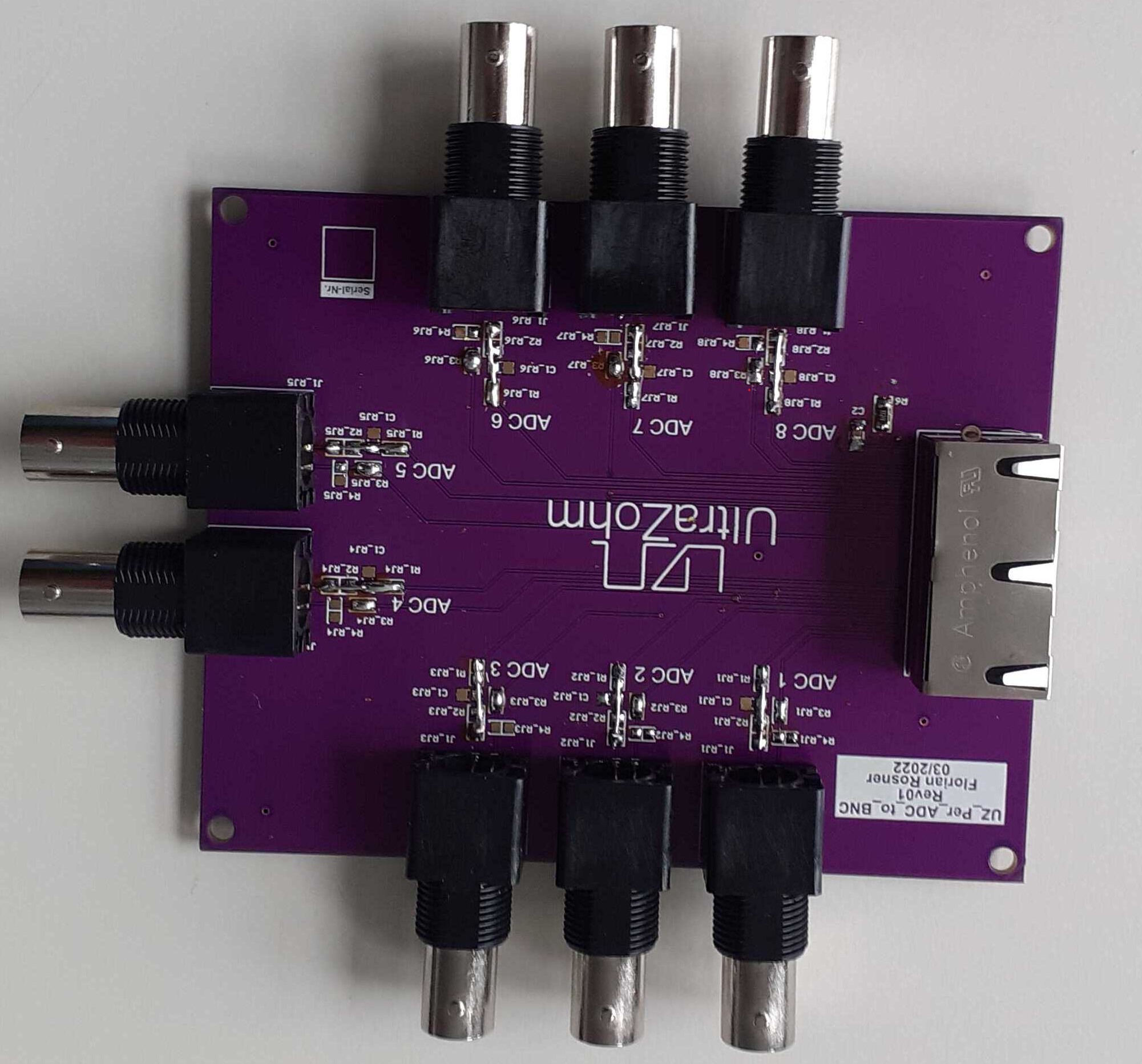

Solder BNC sockets to the Board.
Depending on the application, mount resistors and capacitors.

Known issues

None.

Compatibility

Connect it with two Ethernet ethernet cable according to T568B with the ADC Adaptercard.

See also

Designed by

Florian Rosner, 03/2022
